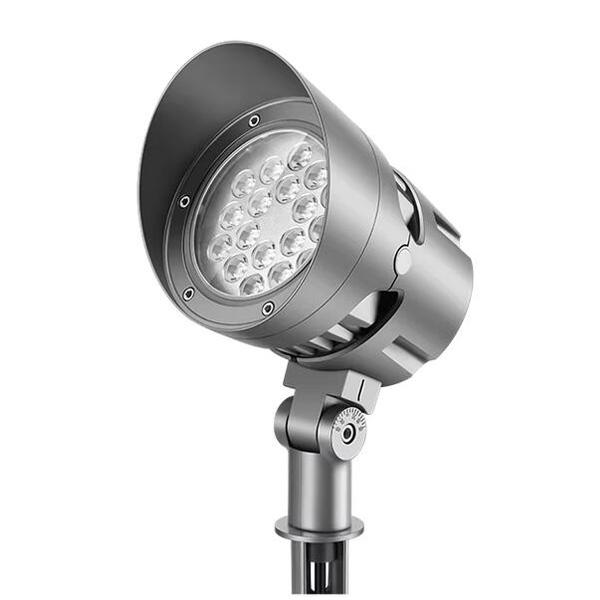

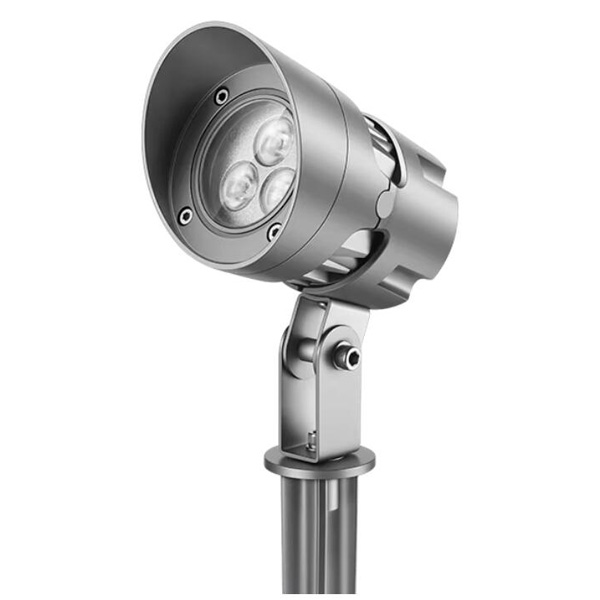

LED spike light for outdoor landscape lighting

LED spike light for outdoor landscape lighting


LED spike light 6W 8W 10W 20W 30W is a premium design for outdoor landscape lighting,architectural lighting, flood lighting etc.,with beam angle 5°/10°/15°/20°/30°/45°/60° options, AC 100-277 V or DC 24 V input, CCT 2700K~6500K day light, amber light 590nm, RGB lighting or RGBW with DMX512 control etc., CE RoHS certified with 3 years warranty

  • LED Spike Light is a premium design with multiple wattage and different beam angle options for outdoor landscape lighting,architectural lighting and flood lighting. It is a sharp design with aluminum housing and fins heat sink for better heat dissipation and long lasting life time.

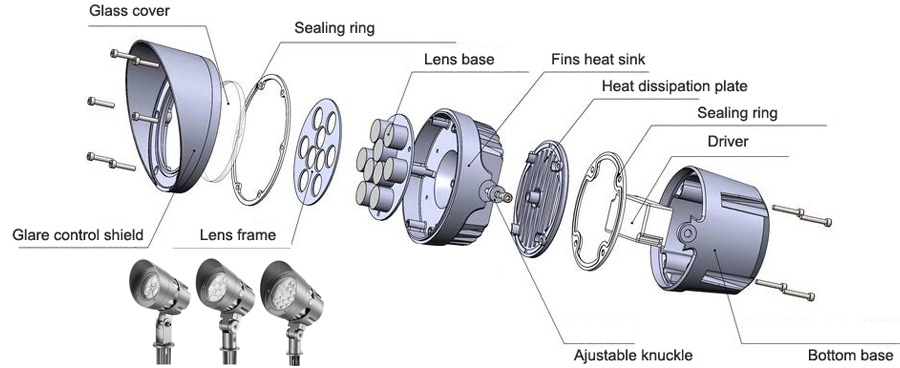

    LED spike lights assembly


    Features:

    1) Die casting aluminum house with fins heat sink+tempered glass cover;

    2) Aluminum glare control shield with optional honeycomb net ;

    3) AC 100-277V or DC 24V input;

    4) CREE SMD LEDs;

    5) IP65 rated for outdoor lighting;

    6) IK08 impact resistance;

    7) -25°~50° ambient temperature resistance;

    8) Standard day light  CCT(2700K-6500K), or amber light 590nm, with options for RGB/RGBW DMX512 control;

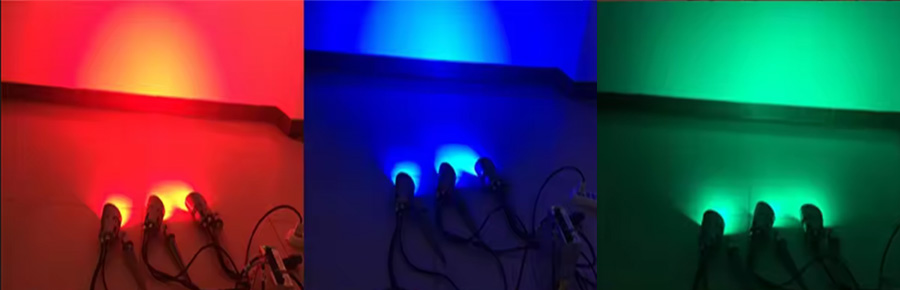

    RGB LED spike light

    Lighting Applications:

    1) Landscape lighting;

    2) Architectural lighting;

    3) Flood lighting etc.

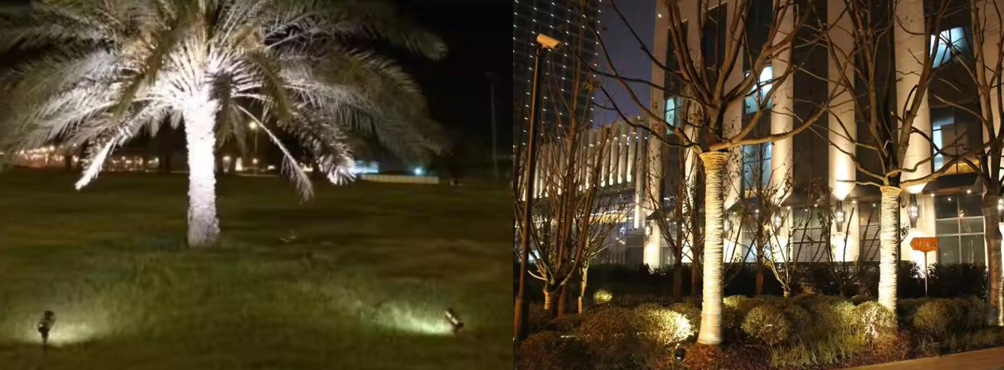

    LED spike lighting applications




  • LED Spike Light data information:

    Item No.
    GLU-CDS-6W GLU-CDS-8W GLU-CDS-10W
    GLU-CDS-20W GLU-CDS-30W
    Rated Watt
    6W
    8W
    10W
    20W
    30W
    Input Volt
    AC 100-277V / DC 24V
    Light source
    CREE SMD LEDs
    Luminous Efficiency
    >80lm/W
    Lumens
    480lm
    640lm 800lm
    1600lm
    2400lm
    Lighting Distribution
    5°/10°/15°/20°/30°/45°/60° etc.
    Color Temperature
    2700K~6500K, amber 590nm,RGB, RGBW etc.
    Certificate
     CE RoHS etc.
    CRI
    >72
    Power Factor
    >0.92
    IP Rating
    IP65 water-proof for outdoor lighting
    Installation 3 pins wire with multiple mounting options
    Operating Temperature -20℃-50℃
    Applications
    Landscape lighting/architectural lighting/flood lighting etc.
    Warranty 5 years factory warranty
    Life Span
    > 50,000hours

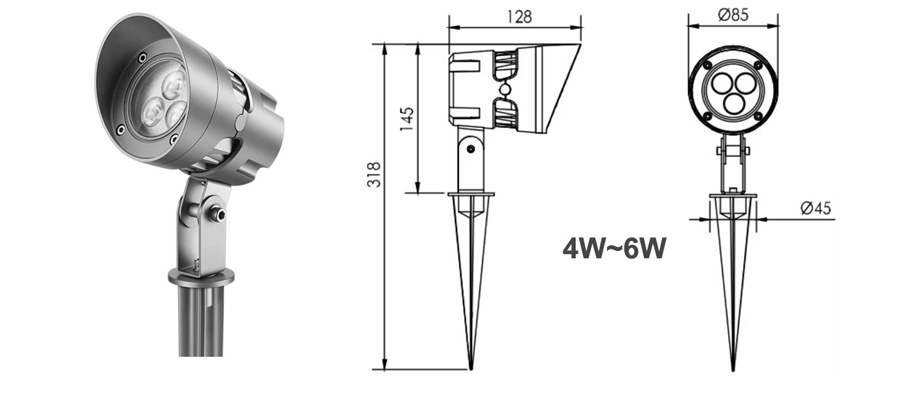

    Dimensions:

    LED spike light 4W 6W

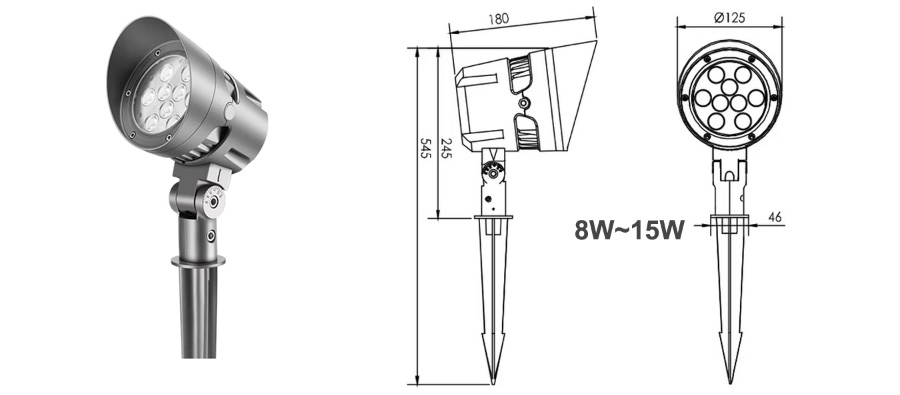

    LED spike light 8W 10W 12W 15W

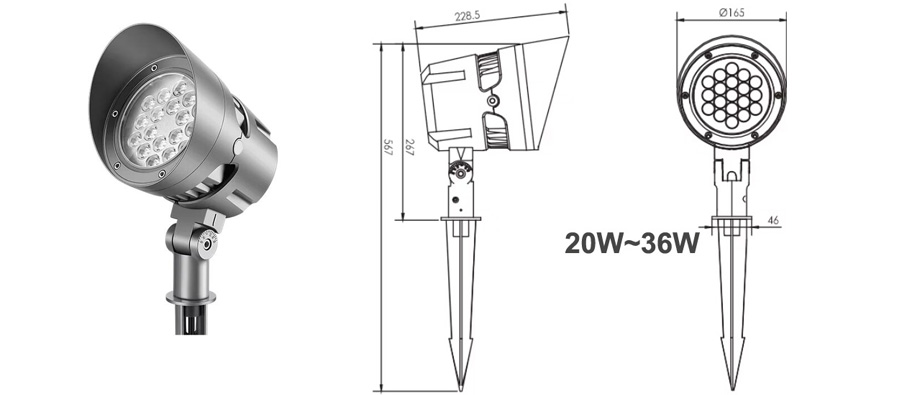

    LED spike light 20W 25W 30W 35W

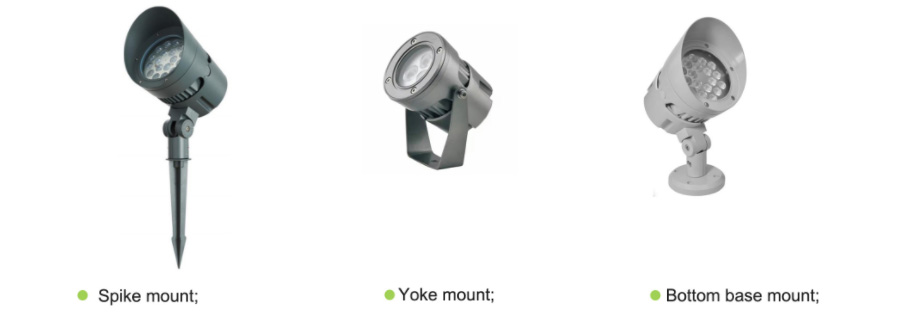

  • LED Spike Lights offer different mounting options catering to your installation requirements, including but not limited to below:

    1)Standard spike mount, spike material and length can be customized;

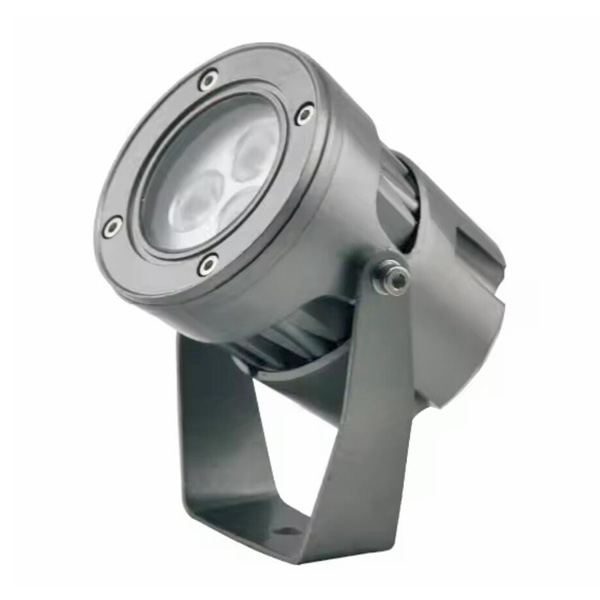

    2)Yoke/U shape bracket mount;

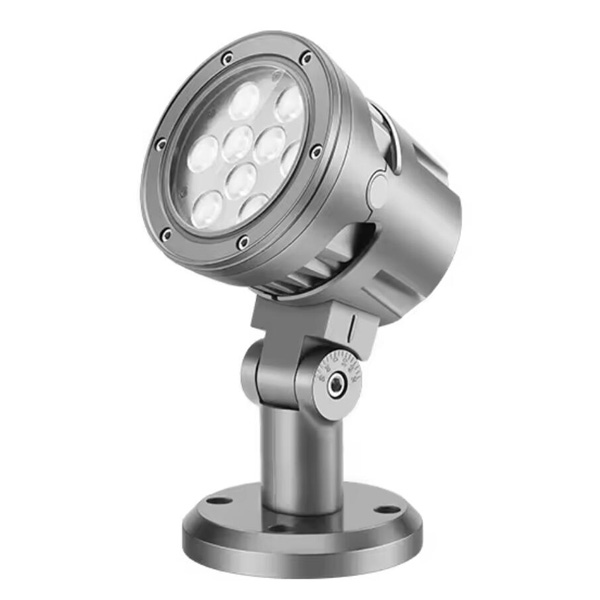

    3)Bottom base sit mount;
