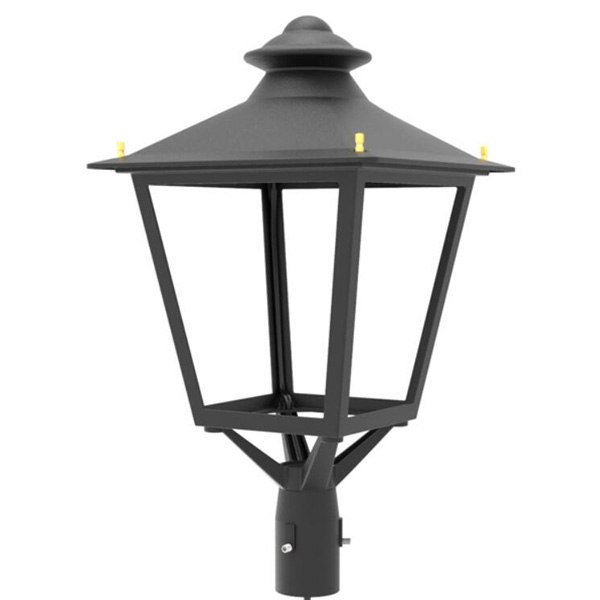

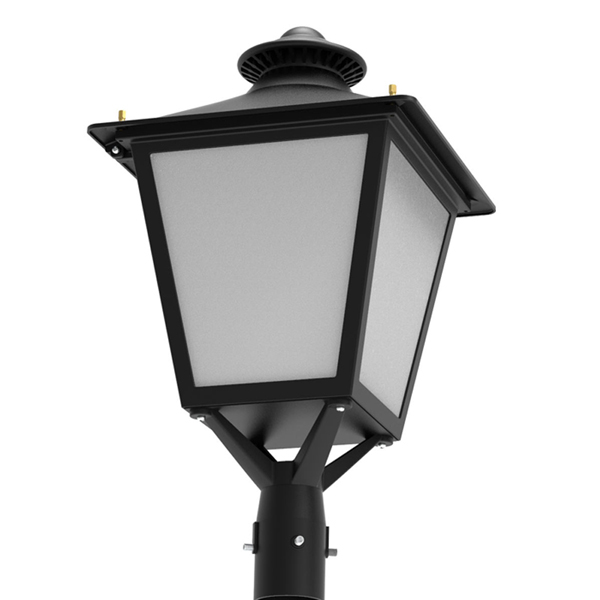

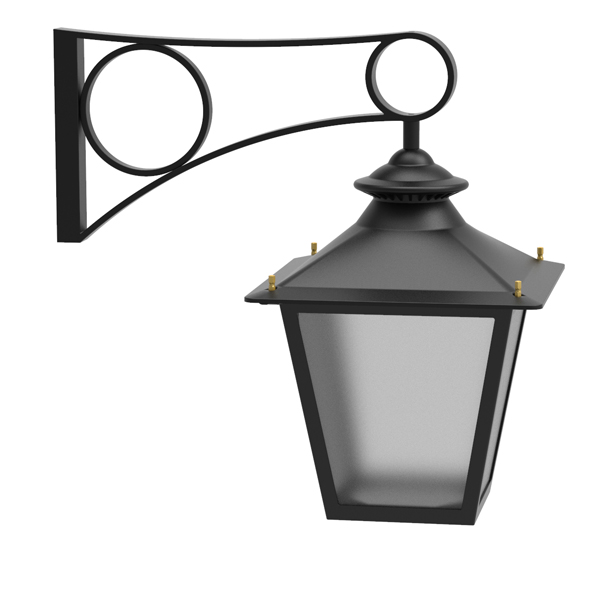

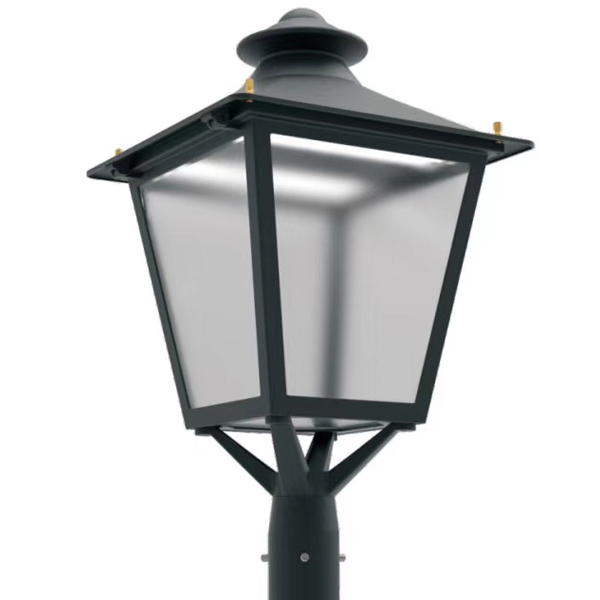

Decorative LED Lantern Fixture

Decorative LED Lantern Fixture


30W-50W-60W power switchable
60W-80W-100W power switchable
3000K-4000K-5000K CCT switchable
100-277V or 200-480V
UL DLC CE RoHS listed
5 years warranty
Photocell or motion sensor is optional

  • Decorative LED Lantern Fixture is designed to meet the needs for street post top lighting,decorative post top lighting,garden yard lighting, path lighting, parking lot lighting etc., replacing old MH HPS HID fixture. 30W-120W is available, UL DLC listed, stocked in USA for blind dropship, free shipping, no taxes.

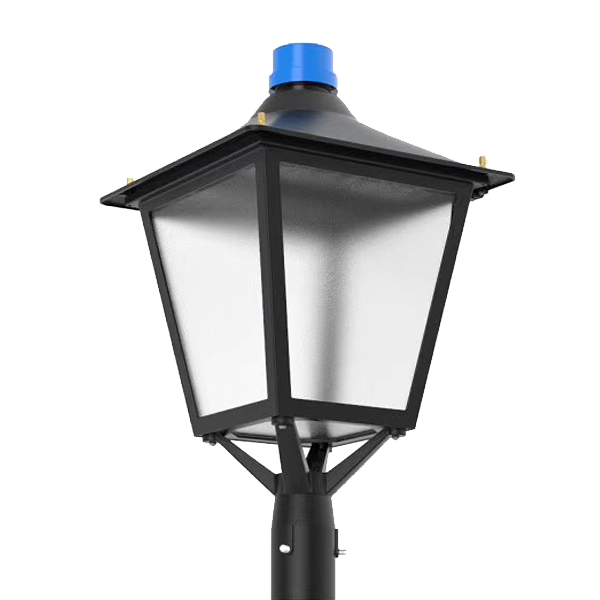

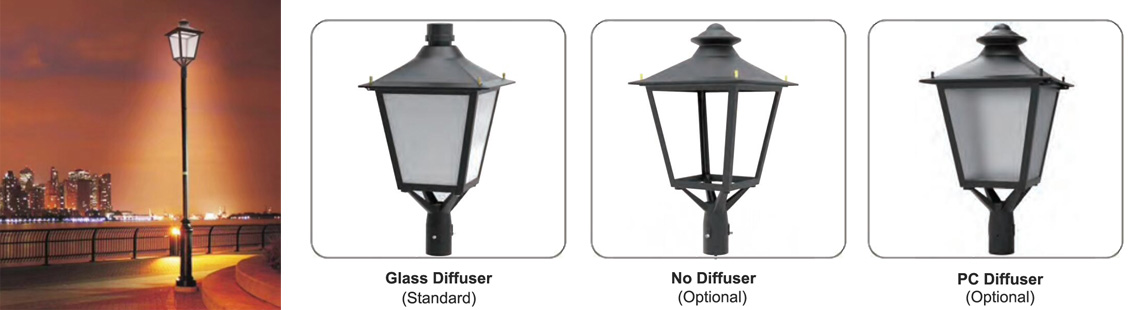

    LED lantern fixture with glass diffuser

    Features:

    1) die casting aluminum house with fins heat sink.

    2) Phillips SMD LED 130lm/W.

    3) 100-277V or 347-480V.

    4) UL DLC listed with 5 years warranty.

    5) PC or glass side covers is available.

    6) IP65 rated for outdoor lighting.

    7) photocell or montion sensor is optional.

    8) Power and CCT switchable.

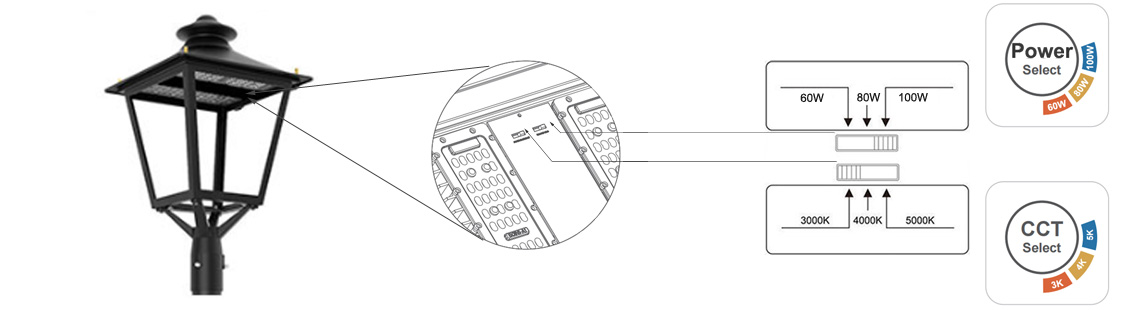

    LED lantern fixtrure power and CCT switchable

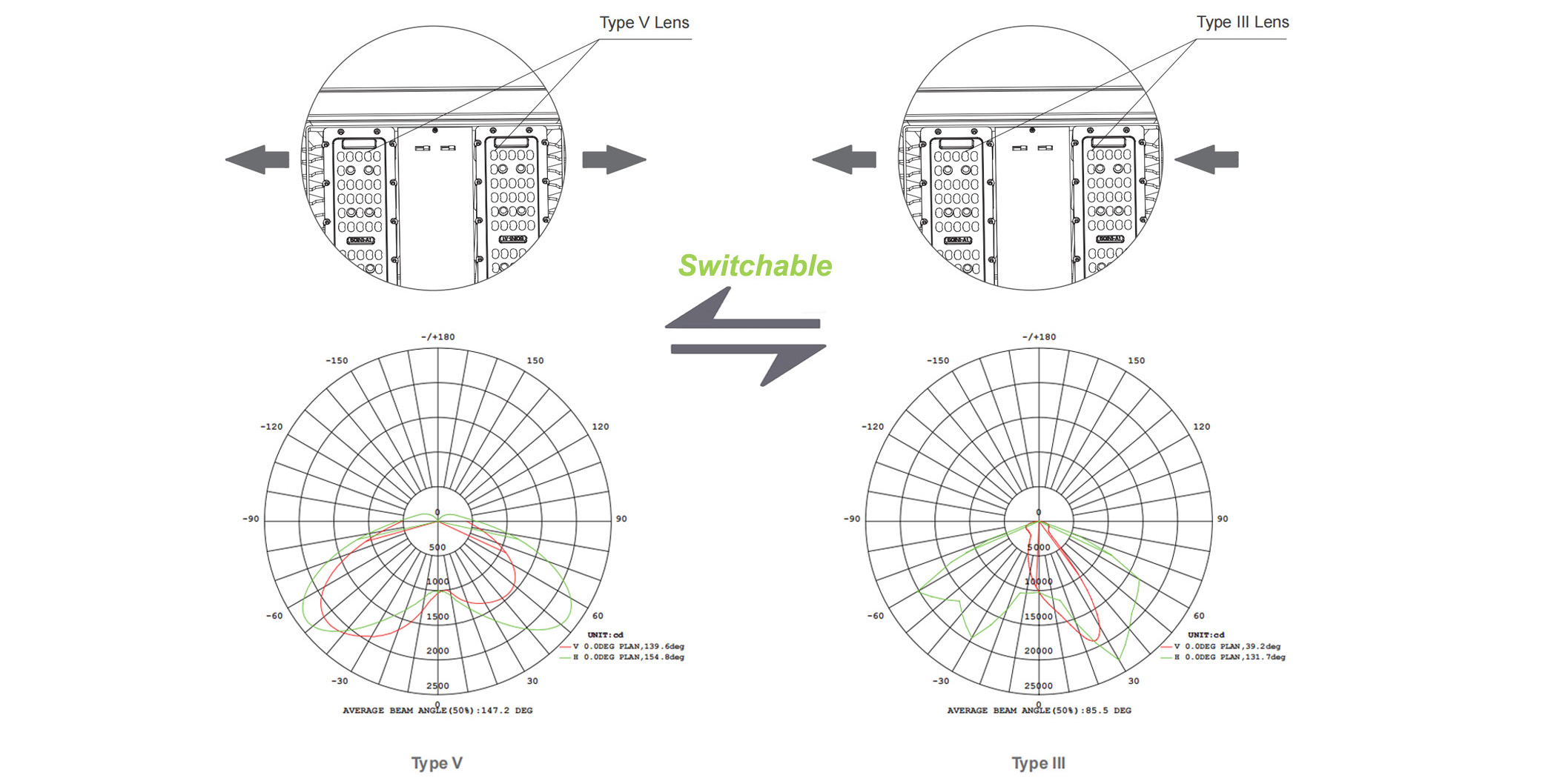

    Lighting Distribution:

    Type V or Type III adjustable manually

    lighting distribution of LED lantern  fixture

    Applications:

    Parking lot lighting;

    Street side way lighting;
    Garden yard lighting;
    House front door lighting etc.

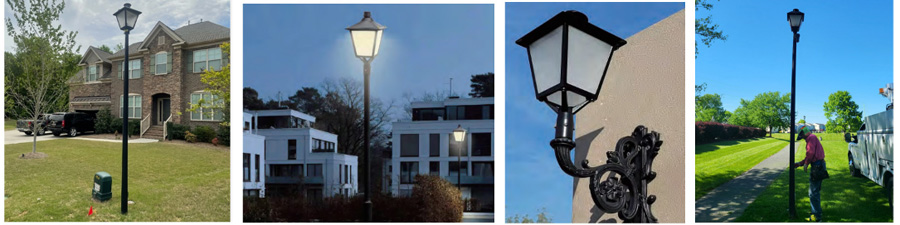

    LED lantern fixture lighting application

  • LED Lantern Fixture Technical Parameters:

    Item No.
    GLU-TP350-W305060
    GLU-TP350-W6080100
    Rated Watt
    30W-50W-60W  Switchable

    60W-80W-100W  Switchable

    Input Volt
    100-277VAC / 50-60Hz
    Light source
    Lumileds 3030 SMD LED
    Luminous Efficiency
    >120LM/W
    Color Temperature
    3000K-4000K-5000K Switchable or else
    Certificate
    UL DLC CE ROSE
    Lumens
    3,600LM-6,000LM-7,200LM

    7,200LM-9,600LM-12,000LM

    Replacement
    100W-175W MH HPS

    175W-300W MH HPS

    CRI
    >72
    Power Factor
    >0.95
    Wiring 3 pins wires
    Dimension
    350mm*350mm*632mm

    350mm*350mm*632mm

    Operating Temperature
    -40℃-45℃
    Applications
    Parking lot lighting street side way lighting / garden yard lighting etc.
    Warranty
    5 years factory warranty
    Life Span

    > 50,000hours

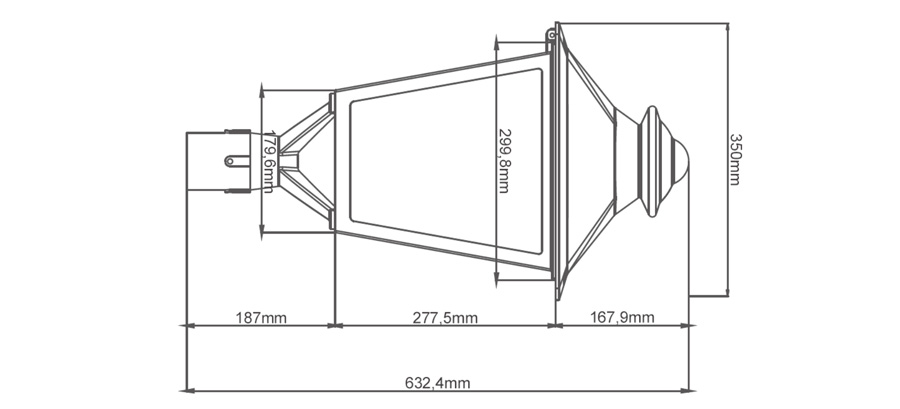

    Dimension;


    LED lantern fixture dimension

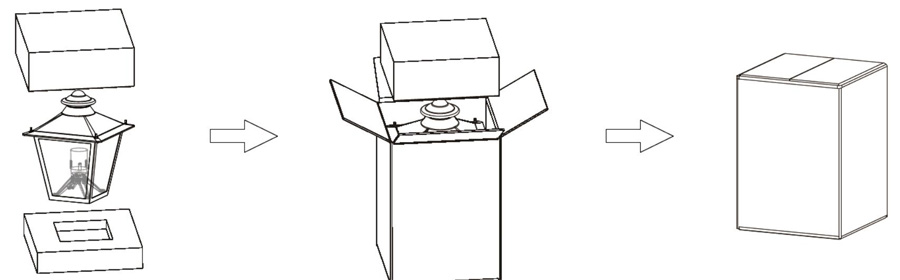

  • Single paper carton box;

    Carton size: 400mm*400mm*555mm

    LED lantern fixtrure packing detail

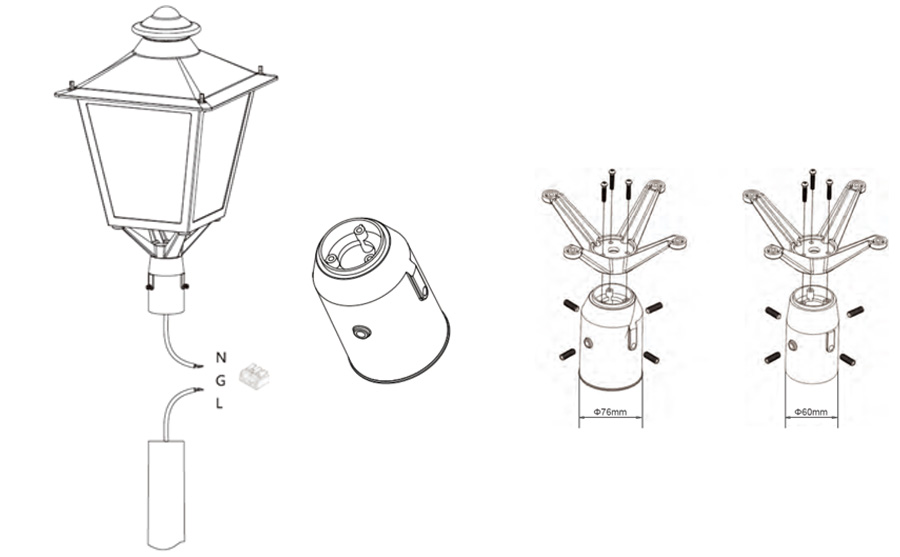

  • Standard 2-3/8" or 3" tenon mount for round pole;

    LED lantern fixture installation
