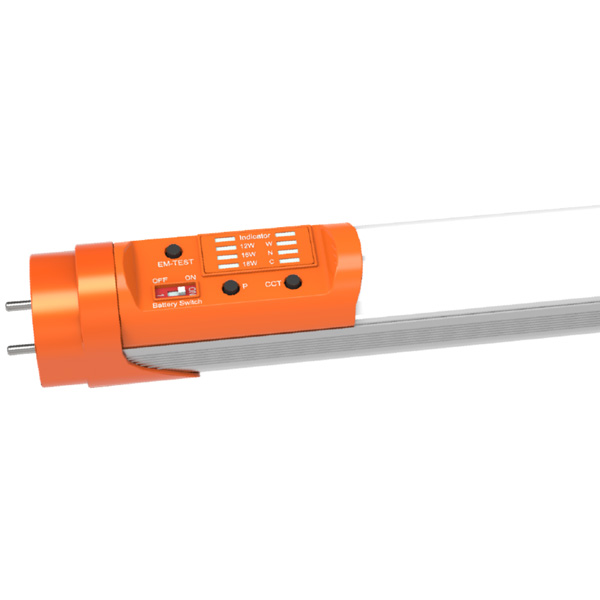

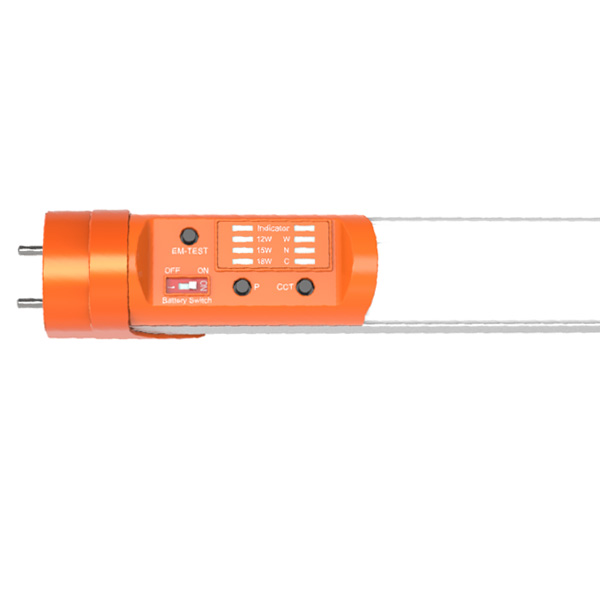

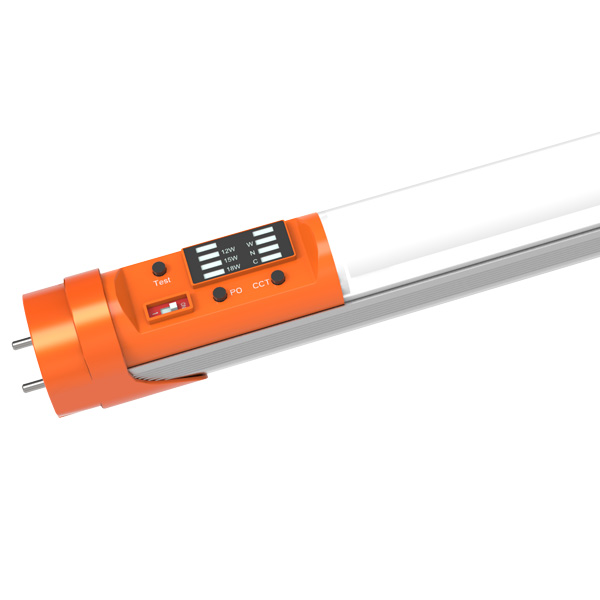

Emergency T8 LED tube lamp is made for emergency lighting system, 100-277V AC direct, built in battery backup for emergency lighting output 680 LM and lasting over 90 minutes. This is newest high-tech design, with output power switchable and color temperature switchable. And this emergency LED tube is compatible with both conventional power supply and emergency power supply function which enable it to work along with standard LED tubes in the same fixture, be turned on-off by the same wall switch.It is designed with function of automatic emergency lighting test 30 seconds discharging monthly and 90 minutes discharging annually.

Features:

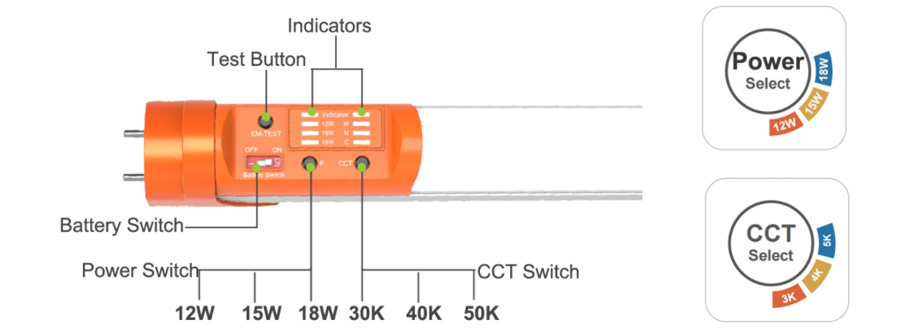

• 12W-15W-18W power switchable
• 3000K-4000K-5000K CCT switchable
• compatible with both conventional power supply and emergency power supply
• Automatic emergency lighting test 30 seconds monthly and 90 minutes annually
• Emergency lighting output 680 LM and lasting over 90 minutes
• Built-in batteries with over-charging and over discharging protection,over 500 times cycles of standard charging and discharging
• 100-277V direct, self-ballast, UL type B
• No distortion and no yellowing light
• Lumens output greater than 120 lm/W
• 50,000 Hours L70 Lifespan
• UL CSA CE RoHS certified with 5 years warranty

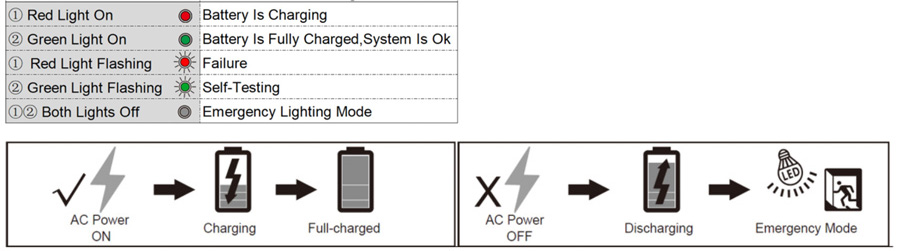

Indicator Lights Status:

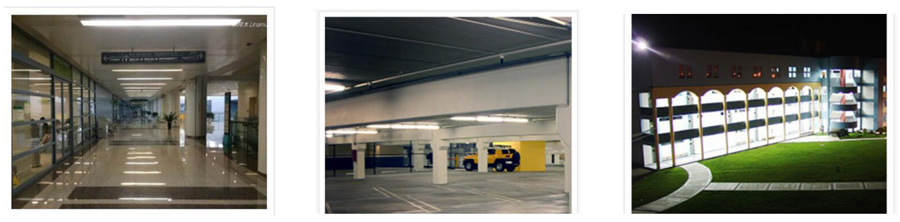

Applications:

Office Lighting;

Hospital Lighting;

Emergency lighting etc.

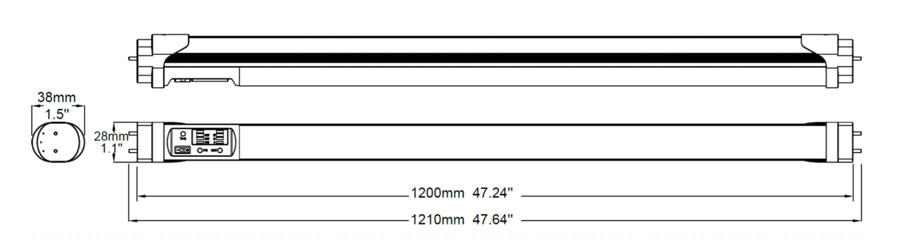

Emergency T8 LED Tube Lamp Technical Parameters:

PLEASE MAKE SURE ALL AC POWER IS TURNED OFF BEFORE INSTALLATION:

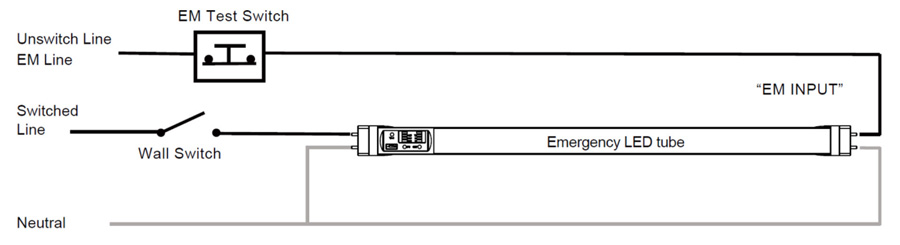

1) Single Emergency LED tube lamp wiring:

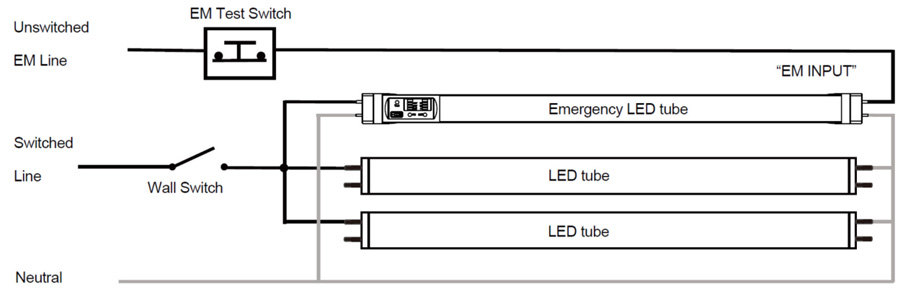

2) Emergency LED tube lamp wiring along with normal LED tube double end power:

3) Emergency LED tube lamp wiring along with normal LED tube single end power:
